List of Leuchte Golf 7 Channels with VCDS / OBDeleven
Leuchte channels allow you to configure the various lighting outputs of the 09 – Cent. Elect. (BCM) in the Volkswagen Golf 7.
With VCDS, each Leuchte channel can have several parameters, including:
- Light Function A-H: function assigned to the output
- Dimmwert AB-CD: Power/Current Value
- Dimming Direction: Direction of Change
- DTC-DFCC Fault Location (Middle Byte ): Fault Monitoring
- Lamp Fault Bit Position: Lamp Monitoring
Please note: Channel assignments may vary depending on the model year, BCM, installed headlights and taillights, and vehicle equipment. This list corresponds to the architecture commonly found on the Golf 7 (5G) and should not be directly applied to other VAG models.
Proceed :
1 – Engine off, ignition off, connect your official VAG-COM VCDS cable to the computer, then plug the other end into your vehicle’s diagnostics socket.
2 – Switch on the ignition and run the VCDS program.
Line 1:
3 – Click on“Select”, then click on“09 – Cent. Elect.”.
4 – Click on“Security Access – 16” then enter the code“31347”.
5 – Click on“Adaptation – 10”.
6 – Search for the desired Leuchte channel.

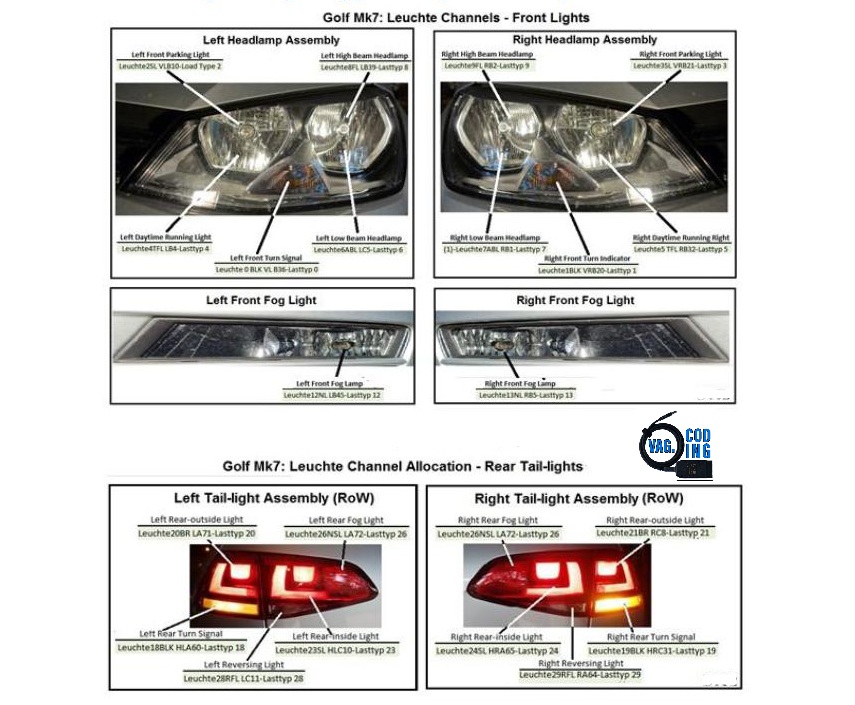

Leuchte Channel Chart – Golf 7
| Channel | Description | Function |
|---|---|---|

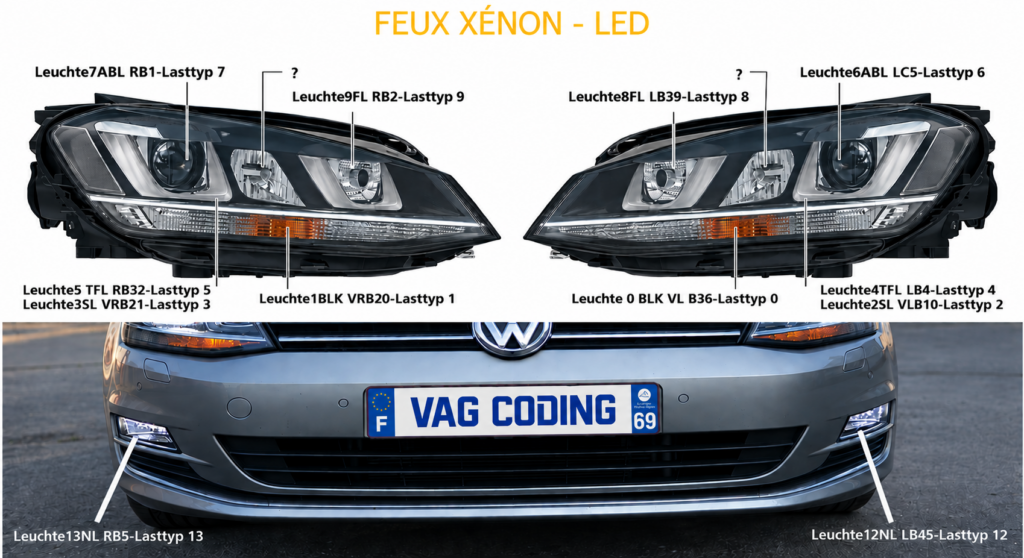

| Leuchte0 | BLK VL B36 | Left front turn signal |
| Leuchte1 | BLK VRB20 | Right front turn signal |
| Leuchte2 | SL VLB10 | Left daytime running light |
| Leuchte3 | SL VRB21 | Right-side daytime running light |
| Leuchte4 | TFL LB4 | Left Daytime Running Light Power Supply |
| Leuchte5 | TFL RB32 | Right-Side Daytime Running Light Power Supply |
| Leuchte6 | ABL LC5 | Left low beam |
| Leuchte7 | ABL RB1 | Right low beam |
| Leuchte8 | FL LB39 | Left Front Parking Light |
| Leuchte9 | FL RB2 | Right Front Parking Light |
| Leuchte10 | SHUTTER LB23 | Left headlight cover / high beam |
| Leuchte11 | SHUTTER RB22 | Right headlight cover / high beam |
| Leuchte12 | NL LB45 | Left Front Fog Light |
| Leuchte13 | NL RB5 | Right Front Fog Light |
| Leuchte14 | AL LB6 | Not used in this configuration |
| Leuchte15 | AL RB44 | Not used in this configuration |

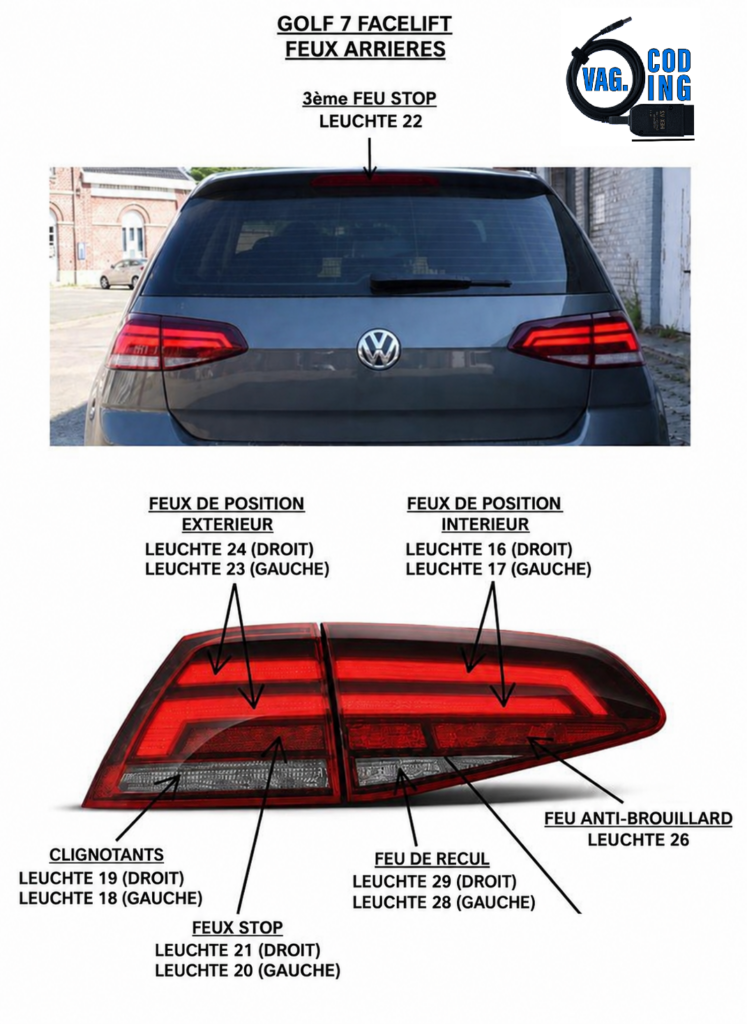

| Leuchte16 | BLK SLB35 / BLK SL KC9 | Left Rear Interior Turn Signal |
| Leuchte17 | TFL R BLK SRB3 / TFL R BLK SR KC3 | Right Rear Interior Turn Signal |
| Leuchte18 | BLK HLA60 | Clignotant arrière gauche extérieur |
| Leuchte19 | BLK HRC31 | Right Rear Exterior Turn Signal |
| Leuchte20 | BR LA71 | Left taillight / brake light |
| Leuchte21 | BR RC8 | Right taillight / brake light |
| Leuchte22 | BR MA57 | Third brake light |
| Leuchte23 | SL HLC10 | Left Rear Interior Parking Light |
| Leuchte24 | SL HRA65 | Right Rear Interior Parking Light |
| Leuchte25 | KZL HA59 | License Plate Lighting |
| Leuchte26 | NSL LA72 | Left Rear Fog Light |
| Leuchte27 | NSL RC6 | Interior Rear Parking Lights |
| Leuchte28 | RFL LC11 | Left reverse light |
| Leuchte29 | RFL RA64 | Right reverse light |
| Leuchte30 | FR LC72 | Foot Lighting |
| Leuchte31 | AMBL 1C61 | Mood Lighting |
| Leuchte32 | AMBL 2C35 | Mood Lighting |
| Leuchte33 | AMBL 3C36 | Mood Lighting |
| Leuchte34 | AMBL 4C37 | Mood Lighting |
